GPRS pepaid smart wireless single optical power meter

FOB Reference Price:Get Latest Price
US $40-60 / Pieces | 100 Piece/Pieces GPRS pepaid smart wireless single optical power meter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
CD HOP
Model Number:
DTSD522M
Display Type:
Analog and Digital
Phase:
Single Phase
Measuring Energy Range:
0-999999
Accuracy Class:
1.0
Output Voltage:
AC150~250V
Operating Temperature:
10~55
Dimensions:
50/60 Hz
Name:
GPRS pepaid smart wireless single optical power meter
Frequency:
50HZ/60HZ
Color:
Black or as your request
Type:
modbus energy meter
Function:
electric energy meter
OEM:
As your request
Rated voltage:
AC 150-250V
Standard:
GB/T17215.321-2008
Features:
GPRS single phase digital energy meter
delivery time:
around 20-30days after confirmed the order
Supply Ability
Supply Ability:
4000 Set/Sets per Month GPRS pepaid smart wireless single optical power meter
Packaging & Delivery
Packaging Details
Prepaid smart single phase electric energy meter is packed with standard wooden packing
Port
Chengdu
Lead Time :
20-30 days after confirmed the order

GPRS pepaid smart wireless single optical power meter



Product Description





Main function



Measuring A, B, C threephase with active or reactive, etc, and could generate combination of active and reactive, and the maximum measurement is 24 road capacity.



lFor A, B,C threephase with active or reactive, the valid range of electric energy measurement is 0~99999999, the unit is kW·h or kvar·h;



lFor combination of active or reactive,the valid range of electric energy is 0~99999999, the unit is kW·h or kvar·h;



lHave the functions of power setting and a key to reset. Using the special debugging tools to set up or reset for A, B, C three-phase with active or reactive and combination of active or reactive power data of energy meter.

DC energy measurement

Measuring 6 load DCs voltage, current, apparent power and parameters of electricity system, etc.



Clock, timer function

Clock has functions of calendar, timing, leap year automatic conversion.

Using relevant debugging tool or system platform to send timing order to do time calibration.



Temperature and Humidity functions

Energy meter has 2 temperature and humidity interfaces which can gather the appropriate temperature and humidity after accessing the temperature and humidity module.



Communication function

With RS232/RS485 communication port.

With ETH standard network communication

With wireless communication function, insert unicom SIM card which can use wireless network or SMS transmission data.

Measuring 6 load DCs voltage, current, apparent power and parameters of electricity system, etc.



Clock, timer function

Clock has functions of calendar, timing, leap year automatic conversion.

Using relevant debugging tool or system platform to send timing order to do time calibration.



Temperature and Humidity functions

Energy meter has 2 temperature and humidity interfaces which can gather the appropriate temperature and humidity after accessing the temperature and humidity module.



Communication function

With RS232/RS485 communication port.

With ETH standard network communication

With wireless communication function, insert unicom SIM card which can use wireless network or SMS transmission data.







ItemTechnical requirementsItemTechnical requirement
Accuracy grade1.0grade, 2.0gradeReference temperature23℃+/-2℃
Reference voltage0.8~1.1UnReference humidity40%~60%RH
Working voltage0.8~1.1UnWorking temperature-10℃~50℃
Power consumption (Under the condition of reference)Each phase voltage circuits:≤1.5W,2VALimit of working temperature-25℃~70℃
Each phase current loop:≤1VATransportation and storage temperature-25℃~70℃
Current measuring range

3×1.5(6)A ,3×10(40)A ,3×15(60)A ,3×20(80)A,

3×20(100)A ,3×40(200),3×100 (400)A,etc. (Use with mutual inductor and according to the request)

Relative humidityMean annual humility: ≤75%RH
30d ( In a natural distribution in a year):≤95%RH
Occasional in other days:85%RH
Reference frequency50HzAltitudeBelow 4000m
Auxiliary power supply1.AC220V±15%,2.DC20~60V,3.AC85V-265V/DC85V-330V(Chosen by the users)Timing accuracyTiming error: ≤0.5s/d(23℃),Amount of change is better than 0.1s/d(23℃)with the temperature changing.
Impulsive constant6400,1600,800,400kwh(kvarh) (Set up according to customers requirement)Shunt runningVoltage circuit + 115% of rated voltage, current line without electric current, meter test output just can produce  one pulsation





More Choices

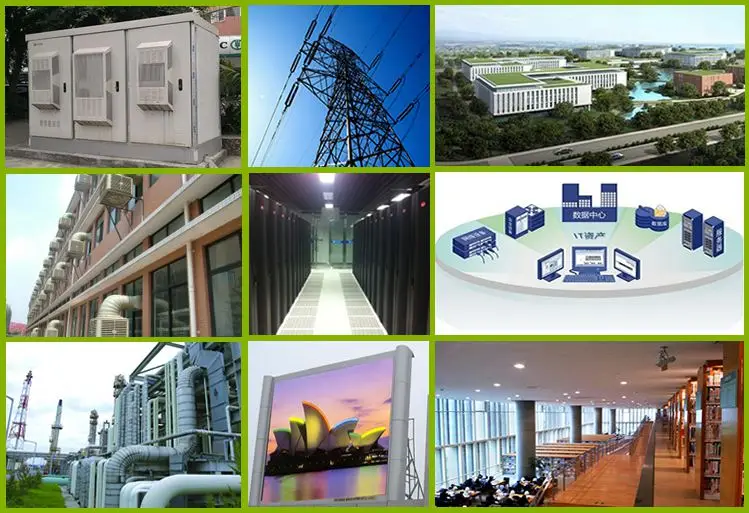

Application









Company Information





Certificate:

Our Partners:

Packaging & Shipping





  we use standard wooden box packing multi-function electric meter.



Leading time:

Usually about 20 days. The exact lead time need to be confirmed according to the quantity of order.



Per conveyance:

Pointed delivery-agent. DHL,UPS or Fedex by your account will be all ok. Also we can hunt for the delivery agent with the best price in China if you need us to do for you.





Any more questions, pls don't hesitate to let us know. Pls contact us ASAP.
